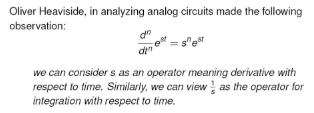

Heaviside

A way of solving circuit dynamical equations.
500

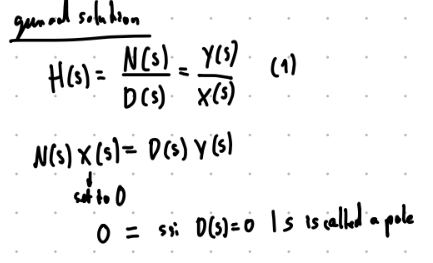

Pasted image 20230204125824.png
The poles are the natural response of the system to a step input.

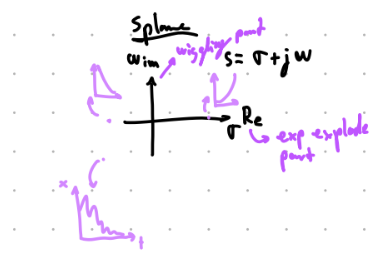

Pasted image 20230204131058.png

How to

500

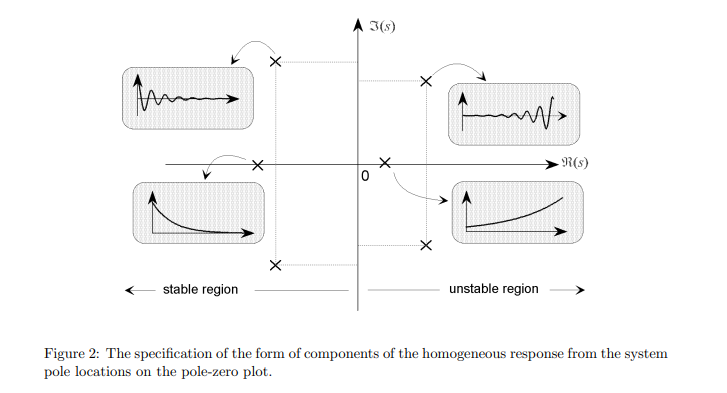

S-PLANE

Pasted image 20230204132806.png
x's are the poles.

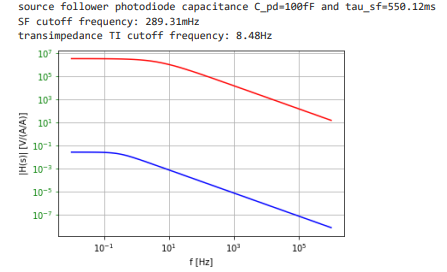

The magnitude of the transfer function is "how well the system responds at a given frequency":
Pasted image 20230204133318.png

Change my mind!
