Synapse analog circuit
For implementing slow neuronal dynamics.
Neural network models
%%🖋 Edit in Excalidraw, and the dark exported image%%
The analog of a synapse in VLSI is that of a multiplier, the Gilbert multiplier
Pulse based neural network synapses

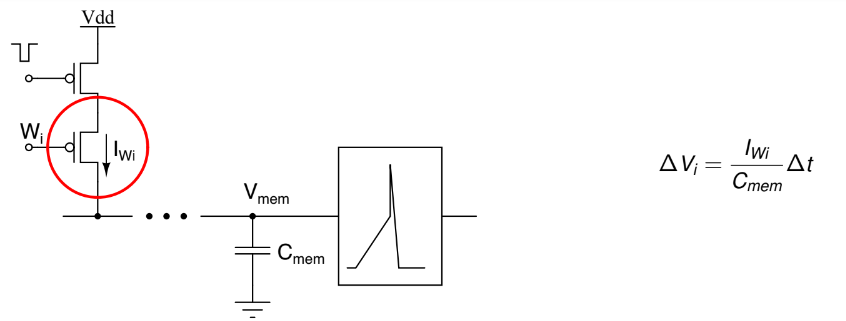

In a pulse based network, the weighted contribution of a synapse can be implemented using a single transistor.
- Pfet for excitatory synapse
- Nfet for inhibitory synapse
- The weight can be set by changing $Wi$ the biais voltage or $\Delta t$.
Exponentially decaying integrator circuit
%%🖋 Edit in Excalidraw, and the dark exported image%%

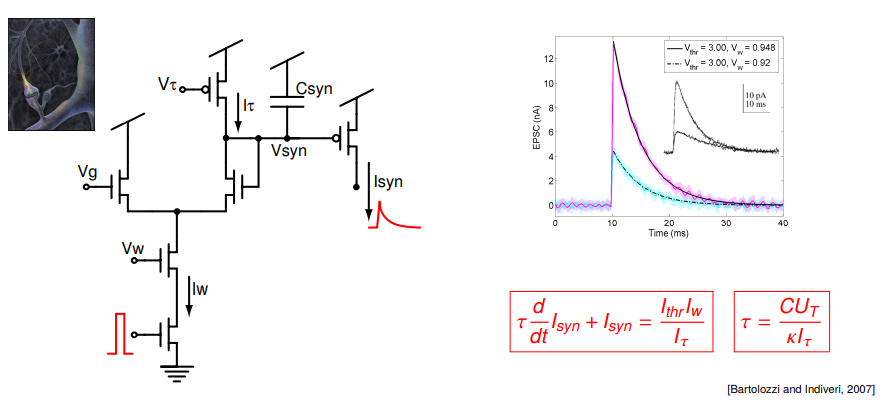

The diff. pair integrator circuit
