Neurons

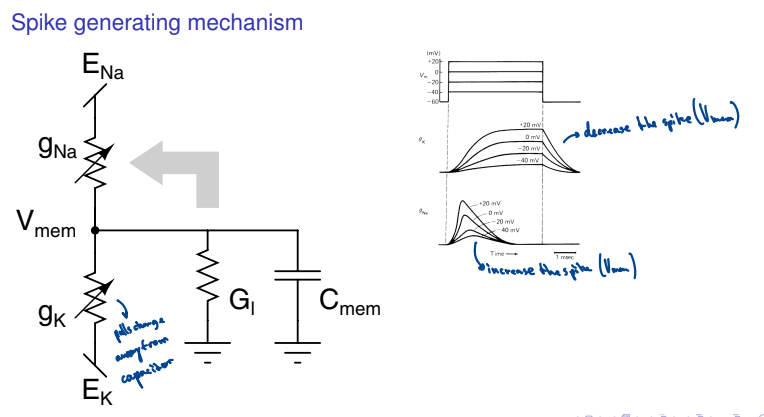

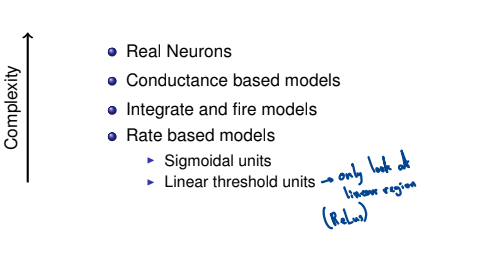

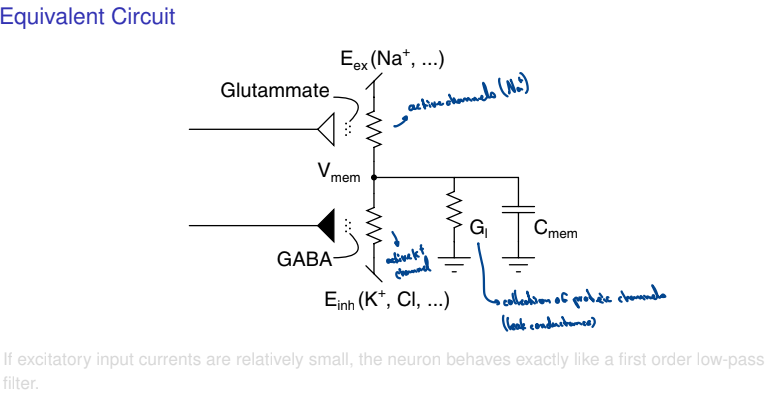

FI curve

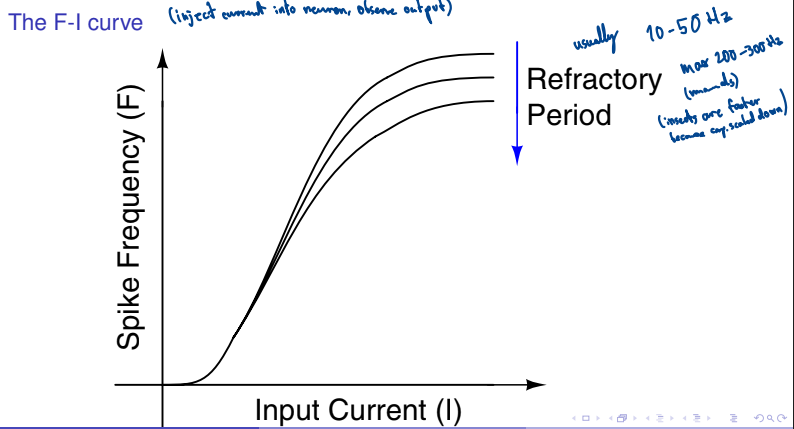

frequency vs current curve:

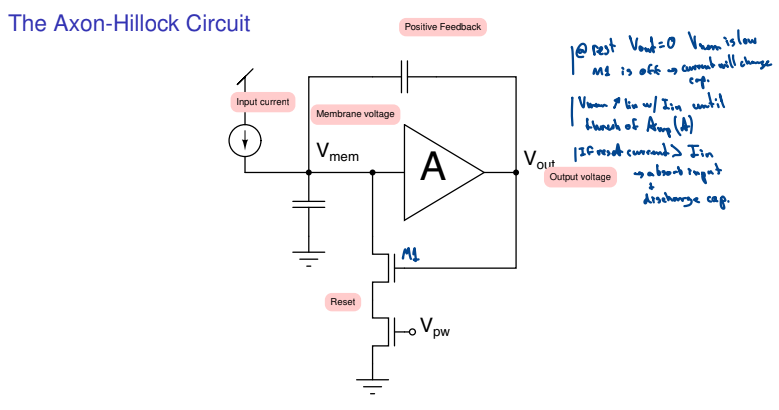

Axon Hillock circuit

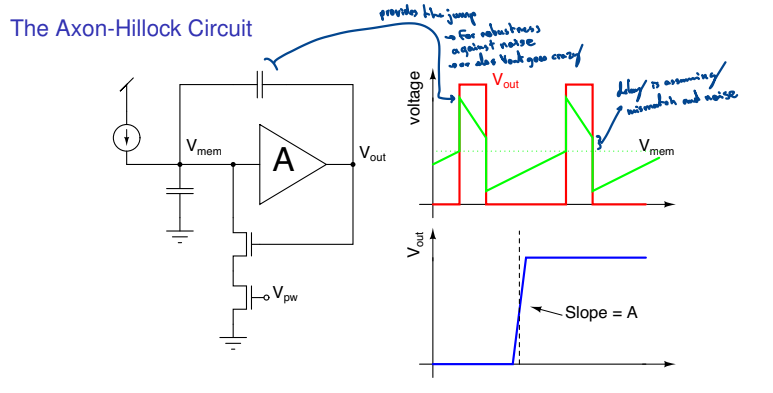

In this circuit, an integrating capacitor is connected to two inverters, a feedback capacitor, and a reset transistor driven by the output inverter.
The capacitive divider

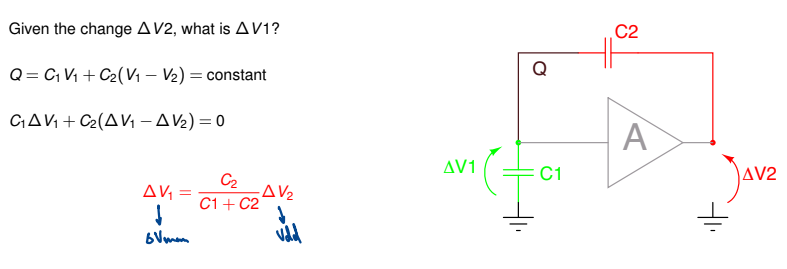

Using the principle of charge conservation, we can analyze the system:

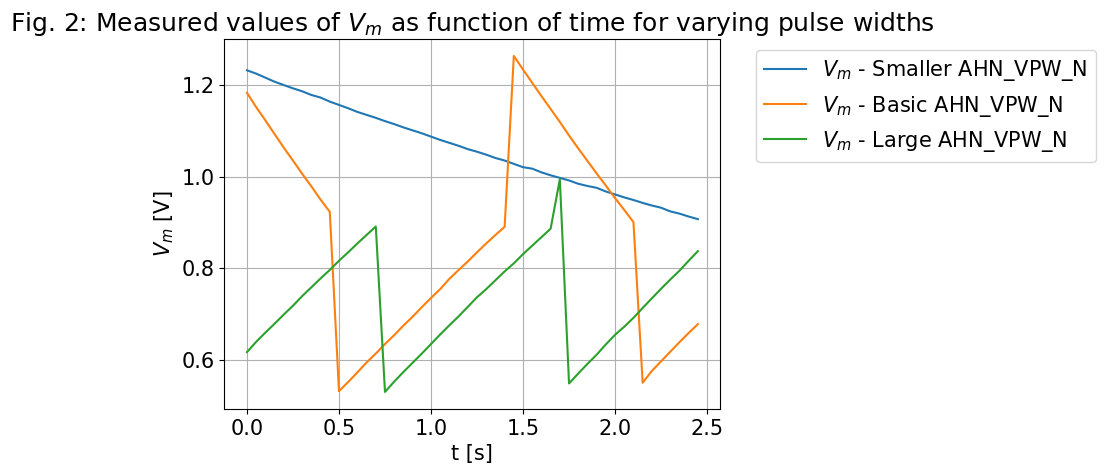

Plots
